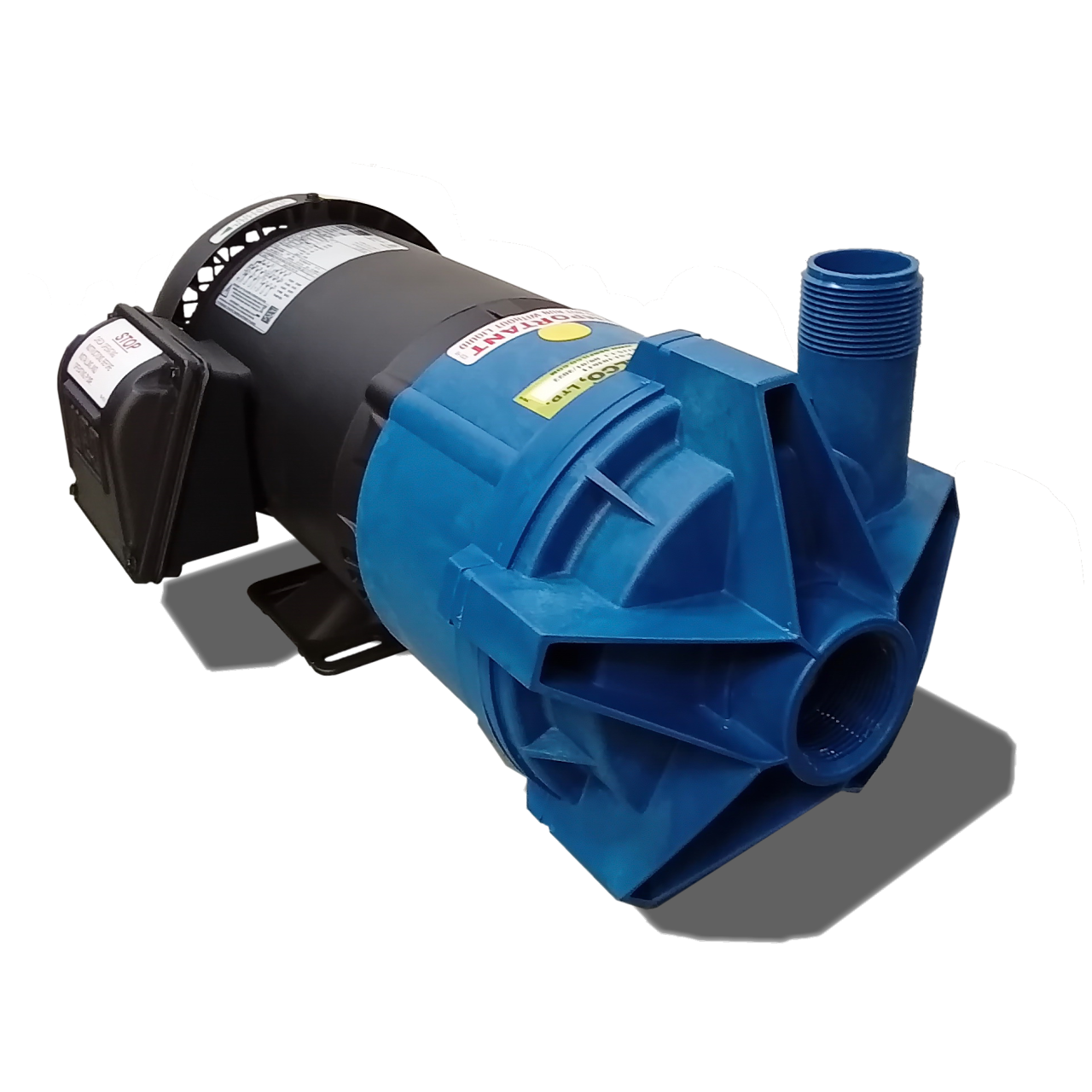

51-1036-F1 Series 'F' Magnetic-Coupled Pumps

Pictures are for reference only and may be not exact representation of the actual product

Material: PP
Material: EPDM
Size: ø3.50" impeller
Inlet: 1 1/2NPT
Outlet: 1 1/4NPT
Flow(max) (gpm): 74 gpm
Press.(max) (ft): 46.14 ft
Power (hp): 1.5 hp
RPM: 3450
Electric Data: 208-230/460V 60Hz
Phase: 3
Seal Type: Magnet coupled
Bushing: Carbon / Alumina

Call

SKU: 51-1036-F1 Category: F Pump

Product Literature

Product Bulletin

P-621 Series 'F' Magnetic-Coupled Pumps

Parts List

Operation and Service Guide
