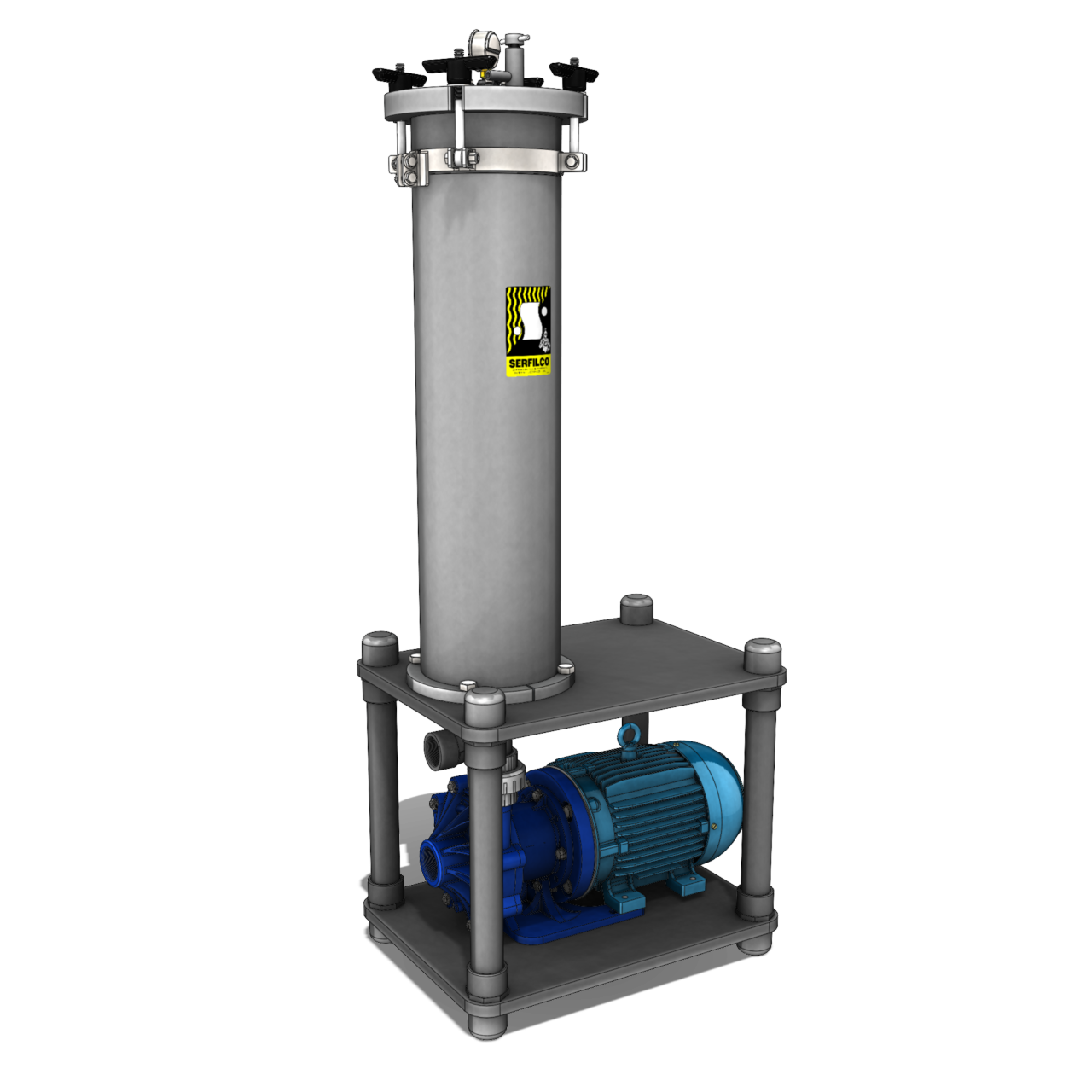

S-CJ18FE320 Space-Saver 'J' Filtration Systems

Material: CPVC
Inlet: 2NPT
Outlet: 1 1/2NPT
Flow(max) (GPH): 4999.98 GPH
Press.(max) (psi): 36 psi
Media: 6 x 30" Double Open End Filter Cartridge / 6
Power (hp): 2 hp
Capacity: 0.98m²
Total Capacity: 63ft²
RPM: 3450
Electric Data: 208-230/460V 60Hz
Phase: 3
Pump: Series 'FE' Magnetic Coupled Pump
Seal Type: Magnet coupled
Bushing: Carbon / Alumina

Call

SKU: S-CJ18FE320 Category: Space-Saver J

Product Literature

Product Bulletin

F-215 Space-Saver 'J' Filtration Systems

Parts List

P-4450 Space-Saver 'J' Filtration Systems

Operation and Service Guide

O-0884 Series 'LX', 'SX', 'SM', 'J' and 'GJ'
