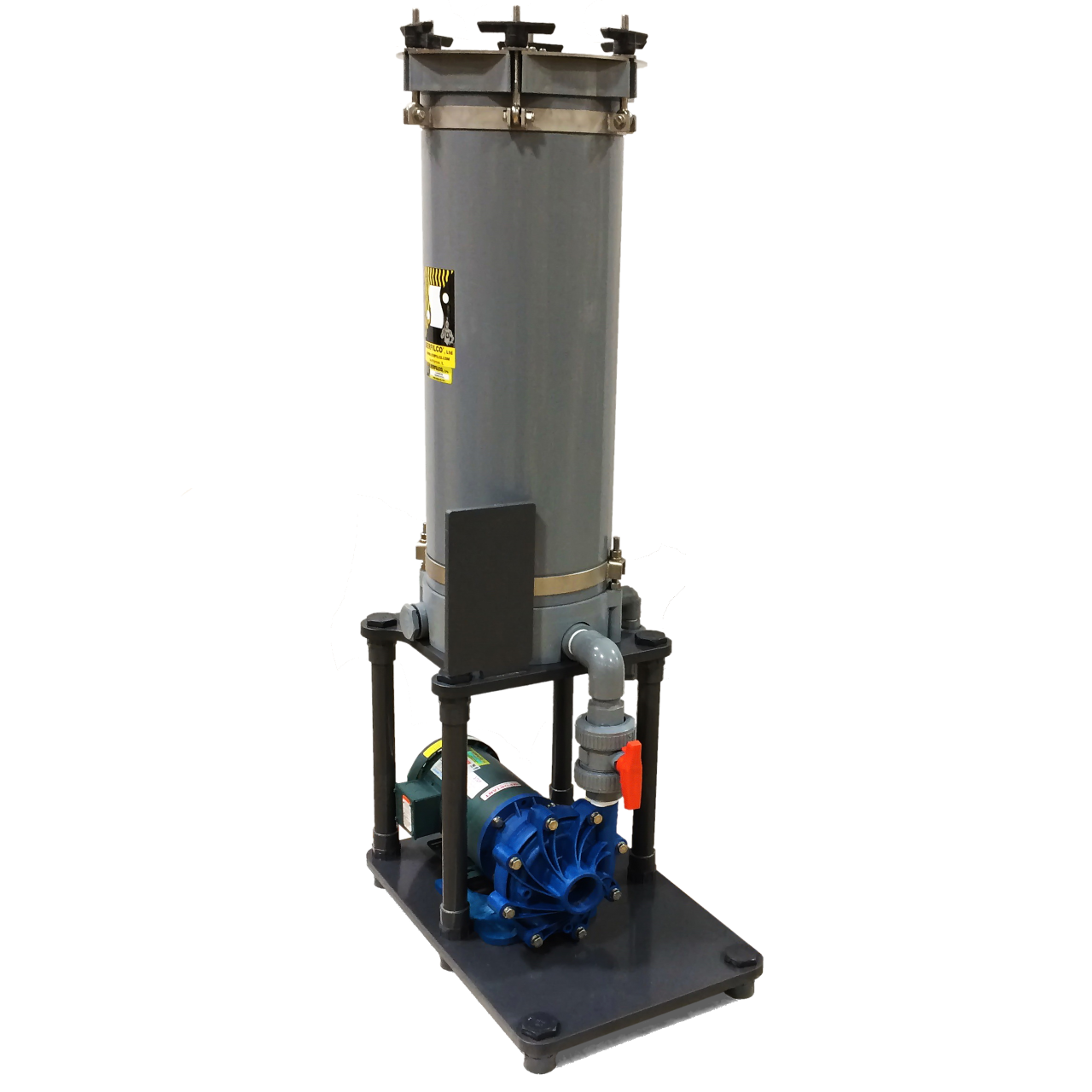

S-CG36FE430 'Super Space-Saver' Filtration Systems

Material: CPVC
Material: EPDM
Inlet: 2NPT
Outlet: 1 1/2NPT
Flow(max) (GPH): 7440 GPH
Press.(max) (psi): 35 psi
Media: 12 x 30" Filter Cartridge / 12
Power (hp): 3 hp
Chamber: Series 'G' Plastic Filter Chambers
Capacity: 0.98m²
Total Capacity: 126ft²
RPM: 3450
Electric Data: 230/460/3/60
Phase: 3
Pump: Series 'FE' Magnetic Coupled Pump
Seal Type: Magnet coupled
Bushing: Carbon

Call

SKU: S-CG36FE430 Category: Super Space-Saver

Product Literature

Product Bulletin

F-205 Super Space-Saver Filtration Systems
