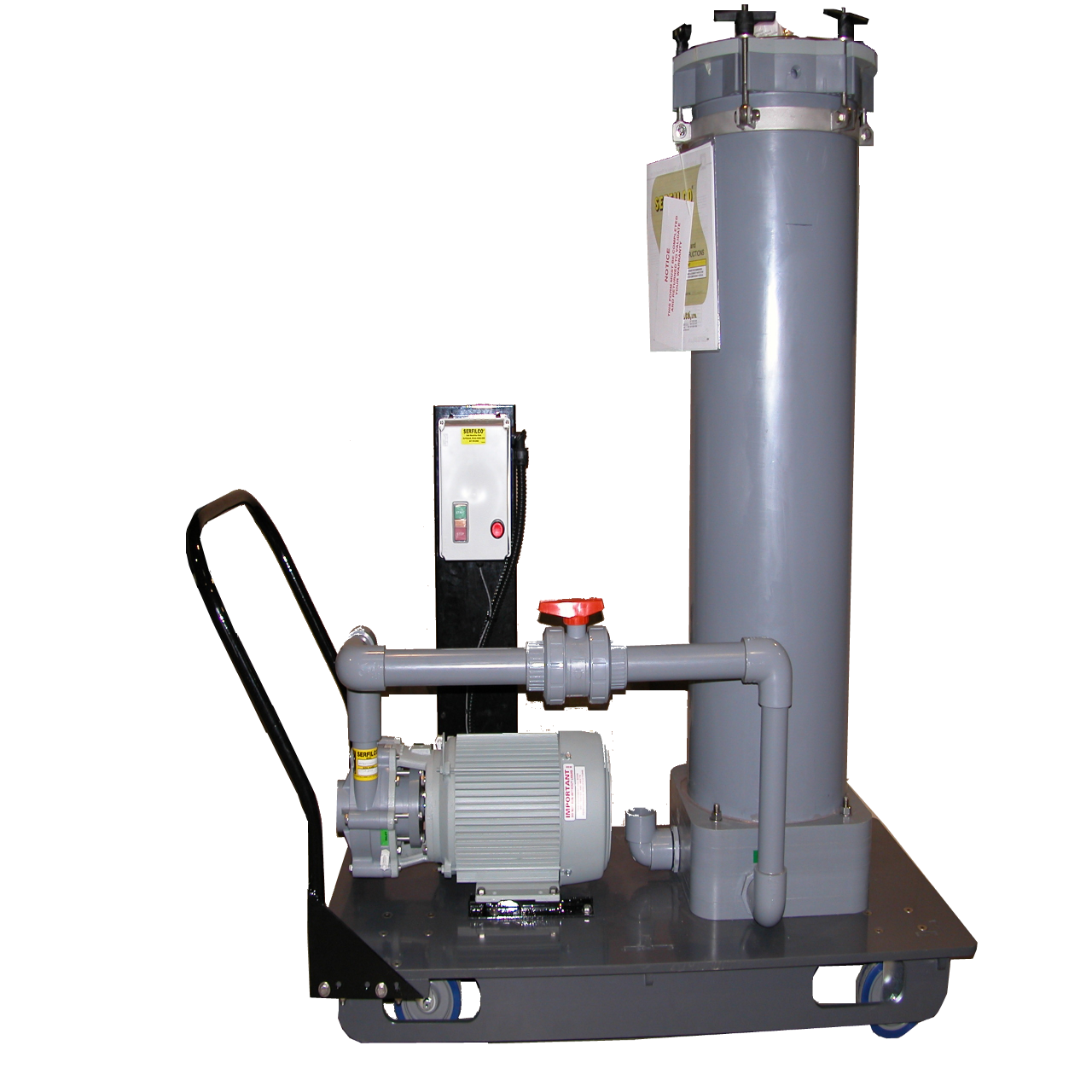

S-CG36HED330H Guardian Filtration Systems

Name: S-CG36HED330H System Guardian Cartridge CPVC EPDM 30" Double Open End Filter Cartridge 2NPT 1 1/2NPT 230/460Volt 60Hz CL360SIO 1-1/2C H2CE3 L(M8XM1)-D3.0 G3A-V1-DV7
SKU: S-CG36HED330H
Availability: InStock

“P-33-1825-P VALVE Butterfly 4 EPDM” has been added to your cart. View cart

“P-51-1026-M PUMP F MAG ø3.00″ impeller PP Polypropylene FKM FPM,Viton 1 1/2NPT 1 1/4NPT” has been added to your cart. View cart

“P-33-2100-K VALVE 1/4NPT PVDF Kynar® 1/4NPT 1/4NPT” has been added to your cart. View cart

“P-33-1820-P VALVE Butterfly 3″ Flange EPDM PVC 3 Flange 3 Flange” has been added to your cart. View cart

“P-51-1272 PUMP F2 MAG ø5.00″ impeller PP Polypropylene FKM FPM,Viton 2NPT 2NPT” has been added to your cart. View cart

Material: CPVC
Material: EPDM
Inlet: 2NPT
Outlet: 1 1/2NPT
Flow(max) (GPH): 6499.98 GPH
Press.(max) (psi): 36 psi
Media: 12 x 30" Double Open End Filter Cartridge / 12
Power (hp): 3 hp
Chamber: Series 'G' Plastic Filter Chambers
Capacity: 0.98m²
Total Capacity: 126ft²
RPM: 3450
Electric Data: 230/460 Volt, 60Hz
Phase: 3
Pump: Series 'HE' Horizontal Pumps
Seal Type: Double Mechanical Seal
