Series 'EO 1 1/4' Vertical Pumps

Print friendly version

Products » Pumps » Vertical Pumps » Series 'EO 1 1/4' Vertical Pumps

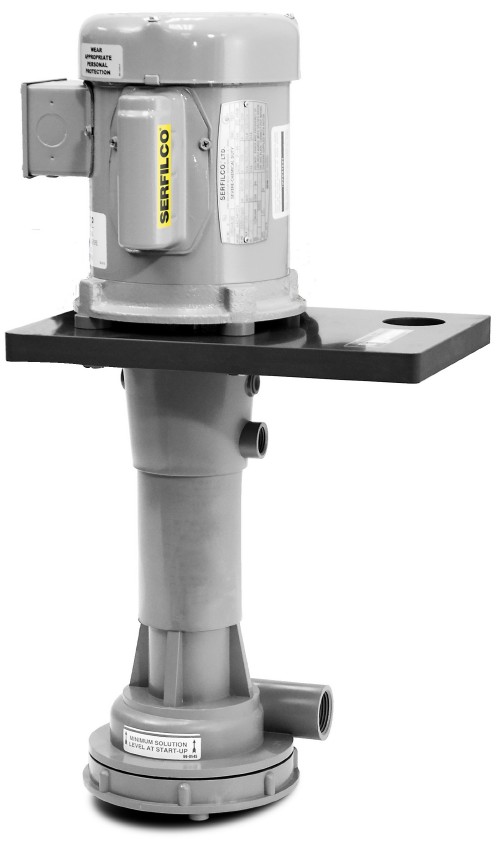

Series 'EO 1 1/4' Vertical Pumps

 Jump to Products

ACIDS / CAUSTICS / CLEANERS
CHEMICALS / PCB / PLATING
WATER / WASTE WATER

Material: PP, CPVC, PVDF
Performance: 20-90 gpm

Features
Efficient and dependable performance
• Flows to 92 gpm or 68 ft. TDH @ 60 Hz (288 LPM or 14.4m @ 50 Hz)
• Non-metallic solution contact PDX PP, CPVC or 100% PVDF FKM or EPDM elastomers
• Runs dry
• Chemical duty motor (1/3 - 1.5 HP) Sealed, oversized bearings, cast iron end bells. Corrosion resistant two-part epoxy enamel finish, SS nameplate. 1.15 service factor at 50 and 60 Hz.
• Centrifugal - quiet, vibration-free
• In- or out-of-tank installation
• Will replace most OEM pumps

Specifications
The Series 'EO 1 1/4' pump benefits from proven design features gained through over 30 years of experience in developing chemically resistant vertical pumps.
The unique design of this pump includes a fully sleeved SS shaft threaded into a chemical duty motor. This eliminates weak shaft connections, pump bearings, spindles, bushings and liners, resulting in a chemical duty pump which can run dry indefinitely, providing years of trouble-free service.
Standard models include a heavy duty machined mounting plate with PTFE vapor seal and column labyrinth seal to protect the motor. The compound impeller prevents liquid from rising in the column, even at maximum TDH, while the semi-enclosed bottom impeller provides efficient flow performance at low horsepower.


Product Literature (in PDF)

 Page 1 of 8

Available Products:

Please contact us with any application or pricing questions you may have

Item NoDescriptionMaterialPrice
P-39-2214EO1-1/4CL4CPVC$700.00
P-39-2214-DEO1-1/4CL4-C1.0CPVC$1,469.00
P-39-2214-DZEO1-1/4CL4-C1.0-DCCPVC$1,549.00
P-39-2214-DXEO1-1/4CL4-C1.0-MPHCPVC$1,510.00
P-39-2214-DTEO1-1/4CL4-C1.0-TCPVC$1,807.00
P-39-2214-EEO1-1/4CL4-C1.5CPVC$1,649.00
P-39-2214-EZEO1-1/4CL4-C1.5-DCCPVC$1,727.00
P-39-2214-EXEO1-1/4CL4-C1.5-MPHCPVC$1,690.00
P-39-2214-ETEO1-1/4CL4-C1.5-TCPVC$1,988.00
P-39-2214-JEO1-1/4CL4-D1.0CPVC$1,432.00
P-39-2214-JZEO1-1/4CL4-D1.0-DCCPVC$1,510.00
P-39-2214-JXEO1-1/4CL4-D1.0-MPHCPVC$1,475.00
P-39-2214-JTEO1-1/4CL4-D1.0-TCPVC$1,772.00
P-39-2214-KEO1-1/4CL4-D1.5CPVC$1,614.00
P-39-2214-KZEO1-1/4CL4-D1.5-DCCPVC$1,690.00
P-39-2214-KXEO1-1/4CL4-D1.5-MPHCPVC$1,654.00
P-39-2214-KTEO1-1/4CL4-D1.5-TCPVC$1,950.00
P-39-2214-XEO1-1/4CL4-MPHCPVC$741.00
P-39-2214-TEO1-1/4CL4-TCPVC$1,039.00
P-39-2215EO1-1/4CL5CPVC$700.00
P-39-2215-EEO1-1/4CL5-C1.5CPVC$1,649.00
P-39-2215-EZEO1-1/4CL5-C1.5-DCCPVC$1,727.00
P-39-2215-EXEO1-1/4CL5-C1.5-MPHCPVC$1,690.00
P-39-2215-ETEO1-1/4CL5-C1.5-TCPVC$1,988.00
P-39-2215-KEO1-1/4CL5-D1.5CPVC$1,614.00
P-39-2215-KZEO1-1/4CL5-D1.5-DCCPVC$1,690.00
P-39-2215-KXEO1-1/4CL5-D1.5-MPHCPVC$1,654.00
P-39-2215-KTEO1-1/4CL5-D1.5-TCPVC$1,950.00
P-39-2215-LEO1-1/4CL5-D2.0n/a$1,722.00
P-39-2215-LZEO1-1/4CL5-D2.0-DCCPVC$1,799.00

 Page 1 of 8
