Series 'S' Plastic Filter Chambers

Print friendly version

Products » Filter Chambers » Cartridge Chambers » Series 'S' Plastic Filter Chambers

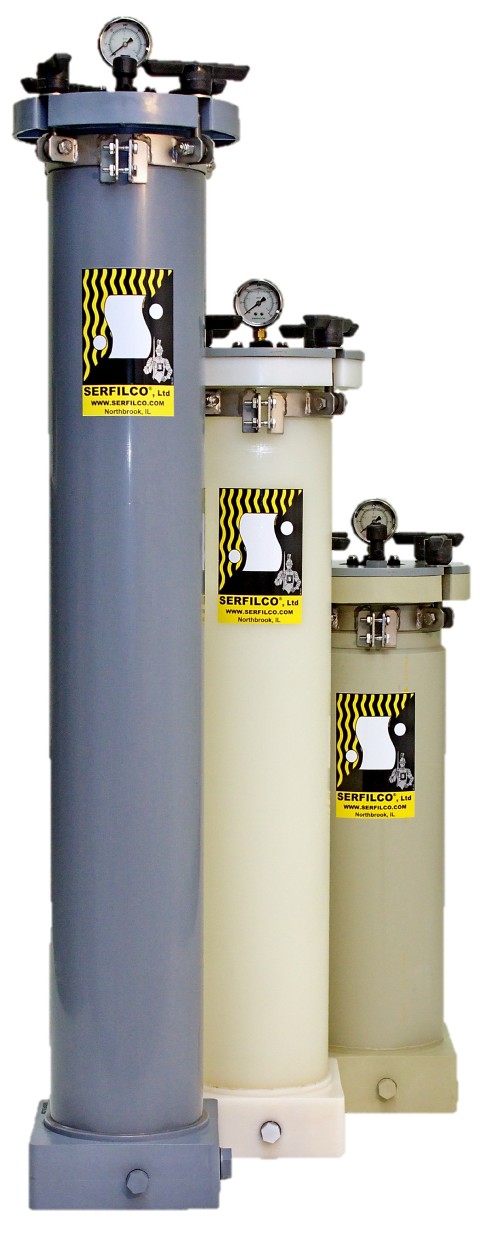

Series 'S' Plastic Filter Chambers

 Jump to Products

WATER TREATMENT / FOOD PROCESSING
CLEANING / PHOTOGRAPHIC
ELECTROPLATING / PHARMACEUTICAL
CHEMICAL / PETROCHEMICAL / BEVERAGE

Material: PVC, CPVC, PP, PVDF
Performance: 3-75 gpm

Features
• Non-metallic solution contact
• Heavy duty construction
• Pressure ratings up to 135 psi
• 0-60 psi pressure gauge, mounted on a gauge guard
• Integral shell-base assembly
• Inlet to outlet at 90° or 180° aspect
• Variety of sizes are available From 3 to 15 of 10" cartridges
• Port sizes 1NPT

Specifications
These filter chambers are designed for filtering process solutions where clarification will extend operating life and improve quality.
For use with a variety of filter media (order separately)
• Depth wound, pleated, carbon or membrane cartridges
• Positive cartridge seal for: DOE (optional - SOE for 222 O-Ring)
• Cleanable sleeves (used with or without precoat)

Flow rates up to 68 gpm depending upon style and length of filter cartridge, solids content, viscosity, pressure drop, size of connection and degree of clarity desired. Pressure ratings of filter chambers depend upon the temperature of solutions being filtered.


Product Literature (in PDF)

 Page 1 of 3

Available Products:

Please contact us with any application or pricing questions you may have

Item NoDescriptionMaterialPrice
P-78-0253CL120(4)S 1 G3CPVC$1,304.00
P-78-0253-2CL120(4)S 1 G3-2CPVC$1,334.00
P-78-0364-CCL120(4)SJ-1-G3,'S' CHMBR CPVC, (BOTTOM INLET FOR SX/SM)CPVC$1,304.00
P-78-0250CL30(1)S 1 G3CPVC$825.00
P-78-0250-2CL30(1)S 1 G3-2CPVC$859.00
P-78-0361-CCL30(1)SJ-1-G3, 'S' CHMBR CPVC, (BOTTOM INLET FOR SX/SM)CPVC$825.00
P-78-0251CL60(2)S 1 G3CPVC$984.00
P-78-0251-2CL60(2)S 1 G3-2CPVC$1,017.00
P-78-0362-CCL60(2)SJ-1-G3 CPVC, (BOTTOM INLET FOR SX/SM)CPVC$984.00
P-78-0252CL90(3)S 1 G3CPVC$1,142.00
P-78-0252-2CL90(3)S 1 G3-2CPVC$1,174.00
P-78-0363-CCL90(3)SJ-1-G3, 'S' CHMBR CPVC, (BOTTOM INLET FOR SX/SM)CPVC$1,142.00
P-78-0253-V2CV120(4)S 1 G3-2CPVC$1,354.00
P-78-0253-VCV120(4)S 1-G3CPVC$1,320.00
P-78-0250-V2CV30(1)S 1 G3-2CPVC$879.00
P-78-0250-VCV30(1)S 1-G3CPVC$847.00
P-78-0251-V2CV60(2)S 1 G3-2CPVC$1,037.00
P-78-0251-VCV60(2)S 1-G3CPVC$1,004.00
P-78-0252-V2CV90(3)S 1 G3-2CPVC$1,196.00
P-78-0252-VCV90(3)S 1-G3CPVC$1,164.00
P-78-0453-AKL120(4)S 1-G3PVDF$3,573.00
P-78-0364-KKL120(4)SJ-1-G3,'S' CHMBR PVDF, 40", DOE,EPDM O-Ring, 1NPTPVDF$3,573.00
P-78-0450-AKL30(1)S 1-G3PVDF$2,329.00
P-78-0361-KKL30(1)SJ-1-G3, 'S' CHMBR PVDF, (BOTTOM INLET FOR SX/SM)PVDF$2,329.00
P-78-0451-AKL60(2)S 1-G3PVDF$2,743.00
P-78-0362-KKL60(2)SJ-1-G3, 'S' CHMBR PVDF, (BOTTOM INLET FOR SX/SM)PVDF$2,743.00
P-78-0452-AKL90(3)S 1-G3PVDF$3,158.00
P-78-0363-KKL90(3)SJ-1-G3PVDF$3,158.00
P-78-0453-AVKV120(4)S 1 G3, 40", DOE,FKM O-Ring, 1NPTPVDF$3,573.00
P-78-0450-AVKV30(1)S 1 G3, 10", DOE,FKM O-Ring, 1NPTPVDF$2,329.00

 Page 1 of 3
