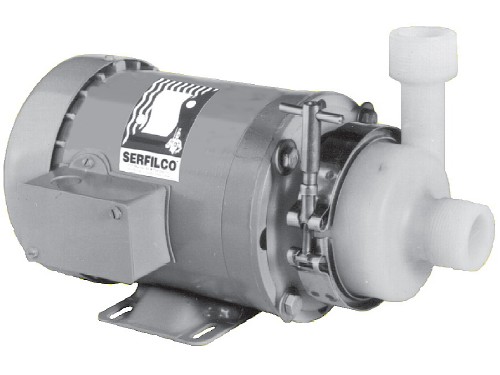

D. I. Water / Ultra Pure Chemicals Plating Solutions / Electronics Dairy / Pharmaceutical Material: PVDF Performance: 10-80 gpm Features • Non-metallic solution contact 100% natural color PVDF for temperatures to 280°F (138°C) • 1 1/2" MNPT or sanitary connections • Mounts to 56J motor • Ideal for OEM applications • Casing clamp for easy disassembly Provides choice of discharge direction • To 80 gpm or 51 FT. TDH @ 60 Hz (252 LPM or 10.8m @ 50 Hz) • Seal can be changed in 5 minutes Specifications Series 'K' centrifugal pumps are molded of high purity 100% natural color virgin PVDF. The resin is FDA approved and offers exceptionally high chemical resistance to strong acids and solvents. Semi-enclosed impeller provides efficient, trouble-free operation at all operating temperatures. Inlet and outlet connections are 1 1/2" MNPT or sanitary flange. Unique design of carbon/ceramic mechanical seal isolates SS shaft from solution contact. The available (M3) seal component is silica-free ceramic which allows the pump to be used for solutions which contain fluorides . Seal elastomers and casing O-Ring are FKM. Casing clamp with "T" handle lock allows choice of discharge direction and ease of pump disassembly. |
