Series 'EH' Vertical Pumps

Print friendly version

Products » Pumps » Vertical Pumps » Series 'EH' Vertical Pumps

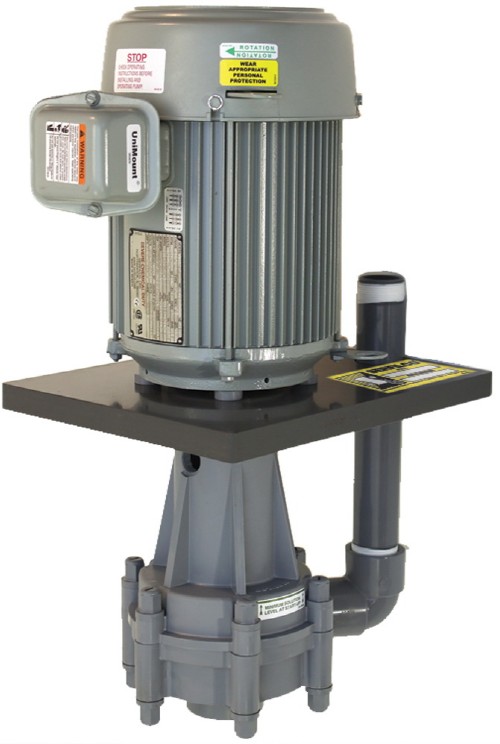

Series 'EH' Vertical Pumps

 Jump to Products

PLATING / WET PROCESSING / ACIDS
CHEMICALS / FUME SCRUBBERS
CLEANING SOLUTIONS

Material: PP, CPVC, PVDF
Performance: 20-175 gpm

Features
HIGH EFFICIENCY AND LOW ENERGY USAGE
• Flows to 185gpm or 145ft. TDH @ 60 Hz
• Non-metallic solution contact - PPP, CPVC, PVDF
• Shaft vapor seal protects motor bearing and atmosphere
• Runs dry
• Chemical duty motor (1.0 - 7.5 HP)
• Centrifugal - quiet, vibration-free
• In or out-of-tank installation
• Choice of 12" or 18" column
• NPT or BSP connections

Specifications
The Series 'EH' Sump Pump features a cantilevered, sleeved, SS shaft with vapor seal between the rotating shaft and the support column to further protect the motor.The cantilevered shaft eliminates bearings and conventional pump seals, resulting in a pump that can run dry without damage. A compound impeller prevents liquid from rising in the column, even at maximum TDH, while the fully-enclosed bottom impeller provides high hydraulic efficiency at low horsepower.

A unique characteristic of all Series 'EH' pumps is their ability to lift solution with an optional suction extension pipe installed. With the motor energized, the pump will self-prime when liquid is at impeller level. The solution level will then be pumped down to the end of the suction extension to a maximum depth of 9 ft. (2.7m). The pump will lose prime, then automatically re-prime when liquid again reaches the impeller.


Product Literature (in PDF)

 Page 1 of 24

Available Products:

Please contact us with any application or pricing questions you may have

Item NoDescriptionMaterialPrice
P-45-0161-KDISCHARGE PIPE ASSEMBLY PVDFPVDF$274.00
P-45-0161-XDISCHARGE PIPE ASS'Y CPVCCPVC$88.25
P-45-0114-KEH1-1/2 1SC D3.0-KCPVC$2,623.00
P-45-0114-HEH1-1/2 1SC D3.0-MPHCPVC$2,414.00
P-45-0114-TEH1-1/2 1SC D3.0-TCPVC$2,731.00
P-45-0114-VEH1-1/2 1SC D3.0-VCPVC$2,403.00
P-45-0110EH1-1/2-1SCCPVC$1,383.00
P-45-0117EH1-1/2-1SC-C1.5CPVC$1,805.00
P-45-0117-KEH1-1/2-1SC-C1.5-KCPVC$2,052.00
P-45-0117-HEH1-1/2-1SC-C1.5-MPHCPVC$1,847.00
P-45-0117-TEH1-1/2-1SC-C1.5-TCPVC$2,159.00
P-45-0117-VEH1-1/2-1SC-C1.5-VCPVC$1,832.00
P-45-0117-VHEH1-1/2-1SC-C1.5-V-MPHCPVC$1,875.00
P-45-0111EH1-1/2-1SC-D1.0CPVC$1,748.00
P-45-0111-KEH1-1/2-1SC-D1.0-KCPVC$1,995.00
P-45-0111-HEH1-1/2-1SC-D1.0-MPHCPVC$1,790.00
P-45-0111-TEH1-1/2-1SC-D1.0-TCPVC$2,105.00
P-45-0111-VEH1-1/2-1SC-D1.0-VCPVC$1,775.00
P-45-0111-VHEH1-1/2-1SC-D1.0-V-MPHCPVC$1,817.00
P-45-0112EH1-1/2-1SC-D1.5CPVC$1,805.00
P-45-0112-575EH-1-1/2-1SC-D1.5-575CPVC$2,013.00
P-45-0112-KEH1-1/2-1SC-D1.5-KCPVC$2,052.00
P-45-0112-KHEH1-1/2-1SC-D1.5-K-MPHCPVC$2,098.00
P-45-0112-HEH1-1/2-1SC-D1.5-MPHCPVC$1,847.00
P-45-0112-TEH1-1/2-1SC-D1.5-TCPVC$2,159.00
P-45-0112-VEH1-1/2-1SC-D1.5-VCPVC$1,832.00
P-45-0112-VKEH1-1/2-1SC-D1.5-V-K, CPVC PUMP W/ PVDF IMPELLERCPVC/PVDF$2,080.00
P-45-0112-VHEH1-1/2-1SC-D1.5-V-MPHCPVC$1,875.00
P-45-0113EH1-1/2-1SC-D2.0CPVC$1,904.00
P-45-0113-KEH1-1/2-1SC-D2.0-KCPVC$2,154.00
